該一體化手持式分析儀是在現場執行常規測量任務時不可或缺的工具

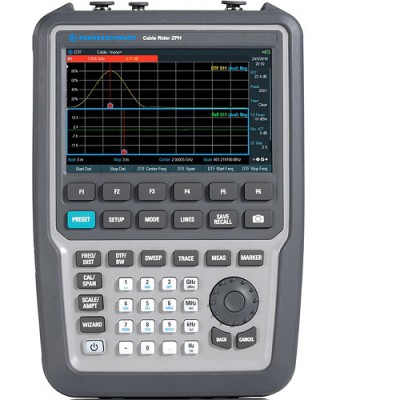

R&S?FSH 手持式頻譜分析儀將頻譜分析儀、網絡分析儀、電纜和天線分析儀、干擾捕獲分析儀以及功率計的功能集于一體。這款多功能分析儀可實現簡單高效的現場測量。堅固設計和內置手柄使其非常適用于戶外任務。
主要特點：R&S FSVA3000 信號與頻譜分析儀
9 kHz 至 20 GHz
出色的靈敏度，使用前置放大器時 < –161 dBm (1 Hz)
一體化分析儀：頻譜分析儀、網絡分析儀和 CAT
內部跟蹤源、VSWR 電橋、偏置器
采用堅固耐用的防水外殼，適用于現場應用
規格：R&S FSVA3000 信號與頻譜分析儀
| Spectrum analysis | |||||
| R&S?FSH4 | R&S?FSH8 | R&S?FSH13 | R&S?FSH20 | ||
| Frequency range | models .04/.14/.08/ .18/.13/.23/.20/.30 | 9 kHz to 3.6 GHz | 9 kHz to 8 GHz | 9 kHz to 13.6 GHz | 9 kHz to 20 GHz |
| models .24/.28 | 100 kHz to 3.6 GHz | 100 kHz to 8 GHz | – | – | |
| Resolution bandwidths | 1 Hz to 3 MHz | ||||
| Displayed average noise level | without preamplifier, RBW = 1 Hz (normalized) | ||||
| 9 kHz to 100 kHz (models .04/.14/ .08/.18 only) | < –108 dBm, –118 dBm typ. | < –96 dBm, –106 dBm typ. | |||
| 100 kHz to 1 MHz | < –115 dBm, –125 dBm typ. | ||||
| 1 MHz to 10 MHz | < –136 dBm, –144 dBm typ. | ||||
| 10 MHz to 2 GHz | < –141 dBm, –146 dBm typ. | ||||
| 2 GHz to 3.6 GHz | < –138 dBm, –143 dBm typ. | ||||
| 3.6 GHz to 5 GHz | – | < –142 dBm, –146 dBm typ. | |||
| 5 GHz to 6.5 GHz | – | < –140 dBm, –144 dBm typ. | |||
| 6.5 GHz to 13.6 GHz | – | < –136 dBm, –141 dBm typ. | |||
| 13.6 GHz to 18 GHz | – | – | – | < –134 dBm, –139 dBm typ. | |
| 18 GHz to 20 GHz | – | – | – | < –130 dBm, –135 dBm typ. | |
| with preamplifier, RBW = 1 Hz (normalized) | |||||
| 100 kHz to 1 MHz | < –133 dBm, –143 dBm typ. | – | |||
| 1 MHz to 10 MHz | < –157 dBm, –161 dBm typ. | < –155 dBm, –160 dBm typ. | |||
| 10 MHz to 2 GHz | < –161 dBm, –165 dBm typ. | – | |||
| 2 GHz to 3.6 GHz | < –159 dBm, –163 dBm typ. | – | |||
| 3.6 GHz to 5 GHz | – | < –155 dBm, –159 dBm typ. | |||
| 5 GHz to 6.5 GHz | – | < –151 dBm, –155 dBm typ. | |||
| 6.5 GHz to 8 GHz | – | < –147 dBm, –150 dBm typ. | |||
| 8 GHz to 13.6 GHz | – | – | < –158 dBm, –162 dBm typ. | ||
| 13.6 GHz to 18 GHz | – | – | < –155 dBm, –160 dBm typ. | ||
| 18 GHz to 20 GHz | – | – | – | < –150 dBm, –155 dBm typ. | |
| Third-order intercept (IP3) | 300 MHz to 3.6 GHz | > +10 dBm, +15 dBm typ. | |||
| 3.6 GHz to 20 GHz | – | > +3 dBm, +10 dBm typ. | |||
| Phase noise | frequency 500 MHz | ||||
| 30 kHz carrier offset | < –95 dBc (1 Hz), –105 dBc (1 Hz) typ. | ||||
| 100 kHz carrier offset | < –100 dBc (1 Hz), –110 dBc (1 Hz) typ. | ||||
| 1 MHz carrier offset | < –120 dBc (1 Hz), –127 dBc (1 Hz) typ. | ||||
| Detectors | – | sample, max. peak, min. peak, auto peak, RMS | |||
| Level measurement uncertainty | 10 MHz < f ≤ 3.6 GHz | <1 dB, 0.5 dB typ. | |||
| 3.6 MHz < f ≤ 20 GHz | – | <1.5 dB, 1 dB typ. | |||
| Display | 6.5" color LCD with VGA resolution | ||||
| Battery operating time (without tracking generator) | R&S?HA-Z204, 4.2 Ah | up to 3 h | |||
| R&S?HA-Z206, 6.3 Ah | up to 4.5 h | ||||
| Dimensions (W × H × D) | 194 mm × 300 mm × 69 mm (144 mm)1) 7.6 in × 11.8 in × 2.7 in (5.7 in) | ||||
| Weight | 3 kg (6.6 lb) | ||||
| Vector network analysis2)/vector voltmeter3) | ||||
| R&S?FSH4 | R&S?FSH8 | R&S?FSH13/20 | ||
| Frequency range | models .24 /.28 /.23 /.30 | 300 kHz to 3.6 GHz | 300 kHz to 8 GHz | 100 kHz to 8 GHz |
| Output power (port 1) | 0 dBm to –40 dBm | - | ||
| Output power (port 2) | 0 dBm to –40 dBm | 0 dBm to –40 dBm | ||
| Reflection measurement (S11, S22) | ||||
| Directivity | 300 kHz to 3 GHz | > 43 dB nominal | > 43 dB nominal | > 43 dB nominal 4) |
| 3 GHz to 3.6 GHz | > 37 dB nominal | > 37 dB nominal | > 37 dB nominal 4) | |
| 3.6 GHz to 6 GHz | – | > 37 dB nominal | > 37 dB nominal 4) | |
| 6 GHz to 8 GHz | – | > 31 dB nominal | > 31 dB nominal 4) | |
| Display modes | vector reflection and transmission measurement (R&S?FSH-K42) | magnitude, phase, magnitude + phase, Smith chart, VSWR, reflection coefficient, mρ, on-port cable loss, electrical length, group delay | ||
| vector voltmeter (R&S?FSH-K45) | magnitude + phase, Smith chart | |||
| Transmission measurements | ||||
| Dynamic range (S21) | 100 kHz to 300 kHz | 70 dB typ. | 70 dB typ. | - |
| 300 kHz to 3.6 GHz | > 70 dB, 90 dB typ. | > 70 dB, 90 dB typ. | - | |
| 3.6 GHz to 6 GHz | – | > 70 dB, 90 dB typ. | - | |
| 6 GHz to 8 GHz | – | 50 dB typ. | - | |
| Dynamic range (S12) | 100[nbsp]]kHz to 300 kHz | 80 dB typ. | 80 dB typ. | typ. 80 dB |
| 300 kHz to 3.6 GHz | > 80 dB, 100 dB typ. | > 80 dB, 100 dB typ. | 80 dB, 100 dB typ. | |
| 3.6 | – | > 80 dB, 100 dB typ. | 80 dB, 100 dB typ. | |
| 6 GHz to 8 GHz | – | 60 dB typ. | 60 dB typ. | |
| Display modes | vector reflection and transmission measurement (R&S?FSH-K42) | magnitude (attenuation, gain), phase, magnitude + phase, electrical length, group delay | ||
| vector voltmeter (R&S?FSH-K45) | magnitude + phase | |||
1) 包括手把。
2) 僅適用于型號 24/28/23/30；型號 24/28 需要額外使用 R&S?FSH-K42。
3) 僅適用于型號 24/28/23/30，需要使用 R&S?FSH-K45。
4) 僅適用于 S22 測量。
