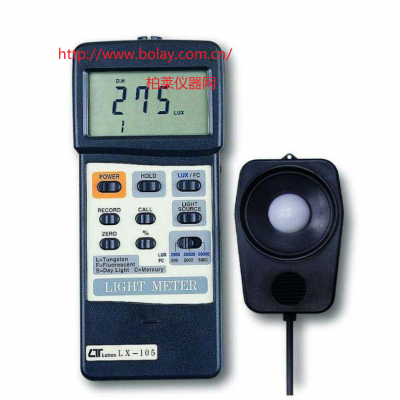

路昌LUTRON LX-105 智能型數字照度計

顯 示 器

*13 mm(0.5") Super large LCD display with contrast adjustment for best viewing angle.
*Dual function meter's display.

取樣時間

Approx. 0.4 sec.

測量范圍

Lux:0-50,000 Lux, 3 ranges.

自動關機

Auto shut off saves battery life, or
manual off by push button.

Foot-candle (Fc) :0-5,000Fc, 3 ranges.

數據輸出

RS 232 PC serial interface.

Relativity: 0-max. 100% to 1999%.
(depend measuring range &measuring value)

過載指示

Indication of"-------".

單位選擇

Daylight or Tungsten,Fluorescent, Mercury lamp

操作溫度

0℃ to 50℃(32℉ to 122℉).

操作濕度

Less than 80% RH.

感 應 器

The exclusive photo diode & color correction
filter, spectrum designed to meet C.I.E.
Sensor cosine correction factor meet standard

電池規格

006P CD 9V battery(Heavy Duty Type)

電力消耗

Approx. DC 5.3 mA.

重量

335 g/0.77LB

尺 寸

Main instrument:180x72x32mm

Sensor probe:85x55x12mm

記憶值回呼

Records Maximum,Minimum and Average readings with RECALL.

標準附件

Instruction manual.....1PC.
Sensor probe、Sensor cover

選購附件

Hard carrying case,CA-06

Lux

2,000Lux

0-1,999Lux

1 Lux

±(4% +2d)

20,000Lux

1,800-19,990Lux

10Lux

±(4% +2d)

50,000Lux

18,000-50,000Lux

100Lux

±(4% +2d)

Foot-candle(Fc)

200Fc

0-186.0Fc

0.1Fc

±(4% +2d)

2,000Fc

167-1,860Fc

1Fc

±(4% +2d)

5,000Fc

1,670-5,000Fc

10Fc

±(4% +2d)
